Stornoway 14′ Dinghy
R2981,25
A beautifully crafted 14’ version of our popular Stornoway design, combining classic looks, modern construction, and versatile rig options for sailing adventures.
Description
Stornoway 14’ Dinghy – Classic Design, Modern Build
The Stornoway 14’ Dinghy is the long-awaited big sister to our beloved Stornoway range—designed in response to high demand from sailors who love the original but wanted more space, stability, and performance.
We’ve based her construction on the proven Kingfisher backbone system, giving you a strong, rigid, and perfectly aligned build. The continuous backbone is formed from a forward girder, centreboard case, and aft girder fixed to a narrow bottom plank—creating a precise foundation for the ply frames, bulkheads, and transom.

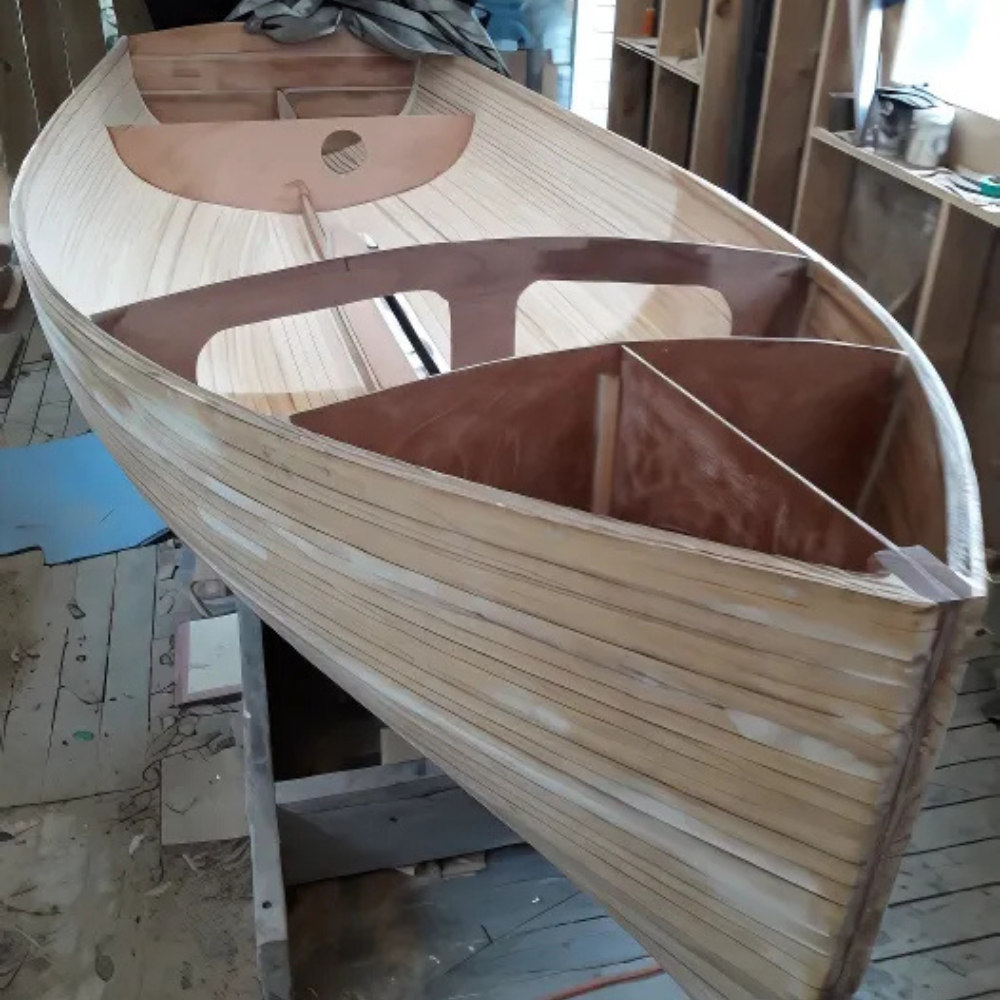

Her 6 planks per side (patterns included in the plans) are stitched into place, then glass-taped and epoxied for a strong, watertight hull. For builders who prefer traditional looks, the plans also include mould shapes and jig details for clinker/ply construction—or you can strip plank the hull for an elegant wooden finish.
We’ve drawn a standard gunter rig so the mast and spars fit inside the hull for easy trailering and transport. If you’d like more sail power and a touch of classic style, she can also take the gunter yawl rig with bowsprit from our Kingfisher 14 design.
Key Features:
-
LOA: 14’ – roomy, stable, and versatile
-
Based on the successful Kingfisher backbone system
-
Choice of stitch & tape, clinker/ply, or strip plank construction
-
6-plank hull per side for a beautiful, rounded form
-
Strong, lightweight, and trailer-friendly
-
Standard gunter rig keeps mast and spars short for easy storage
-
Optional gunter yawl rig with bowsprit for added performance and style
-
Suitable for family sailing, club use, or coastal adventures
Perfect For:
-
Home builders seeking a proven, versatile dinghy design
-
Sailors wanting the beauty of a traditional boat with modern materials
-
Families and clubs who need stability, space, and performance
Stornoway 14 Specifications
| Description | Imperial | Metric |
|---|---|---|
| LOA | 14' | 4.27m |
| Hull Mid Depth | 1'10" | 0.56m |
| Beam | 5' 9" | 1.74m |
| Draft | 8"/ 3'10" | 0.2/1.17m |
| Sail Area | 122sq.ft | 11.36 sq.m |
| Estimated Dry weight | 290lbs | 132kg |
| Hull Shape | Multichine with 6 planks a side | |
| Construction method | stitch and tape | clinker ply and strip plank |
| Plywood requirements | 13 x sheets 6mm 1x 9mm sheet | |
| Drawing/ Design Package | 6 x A1 drawings | 8 x A4 instructions |
| Guidance usage | 4 Adults |
